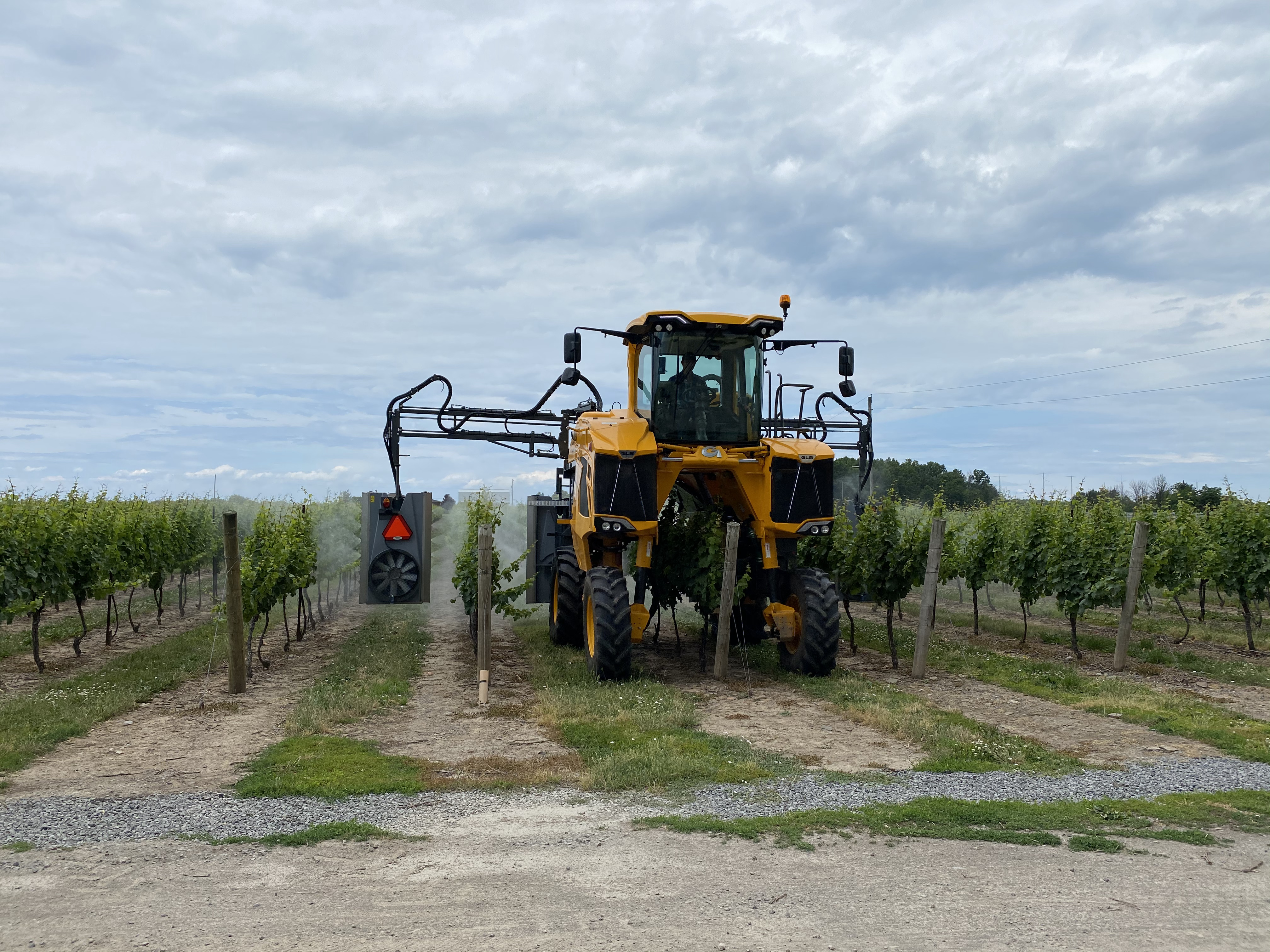

MULTIFLOW PROGRESS QUATTRO
Air speed, precision and efficiency
If you have a G7 or G8 carrier, a large vineyard, and work under extreme conditions: this spraying cell was specifically designed with you in mind. It is quick and easy to set up, thanks to its single-piece chassis/tank assembly, which is compact and ergonomic to ensure stability, safety and comfort during use. The tank can be cleaned thoroughly and easily using the integrated rotating rinsing nozzle.
The spray product follows a circuit carefully designed and optimised by our developers. You add the product to a mixer screen which is then fed through a low pressure filter. It is circulated by a four-piston diaphragm pump with a sufficient capacity to ensure optimum priming of the circuit and efficient mixing. It is then conveyed to the regulation and distribution rail via a high pressure filter. The regulation and distribution controls are easy to operate thanks to the large VIEWmaster touch screen in the cab which integrates the DPAE flow regulator and end of row sequencing.

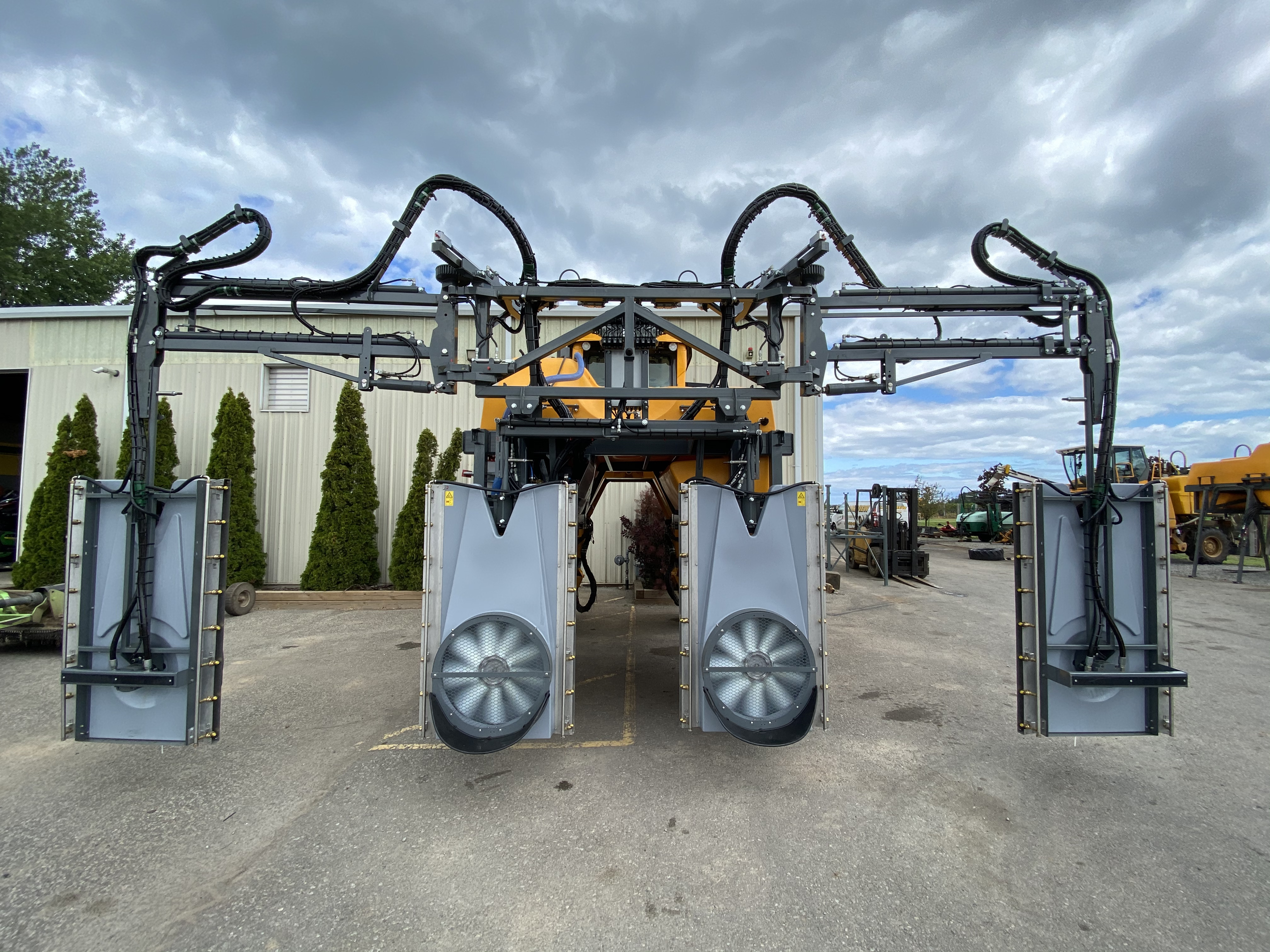

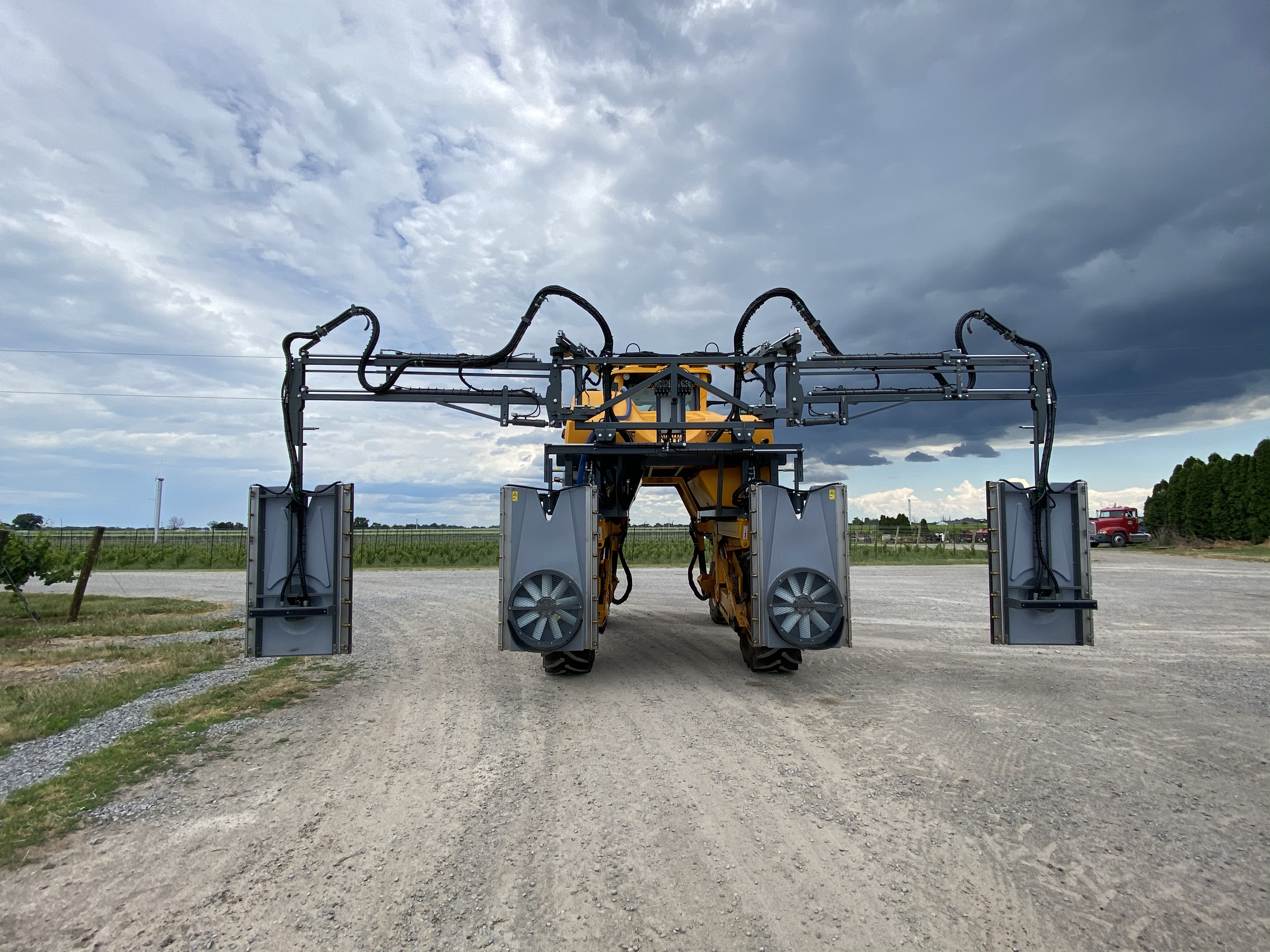

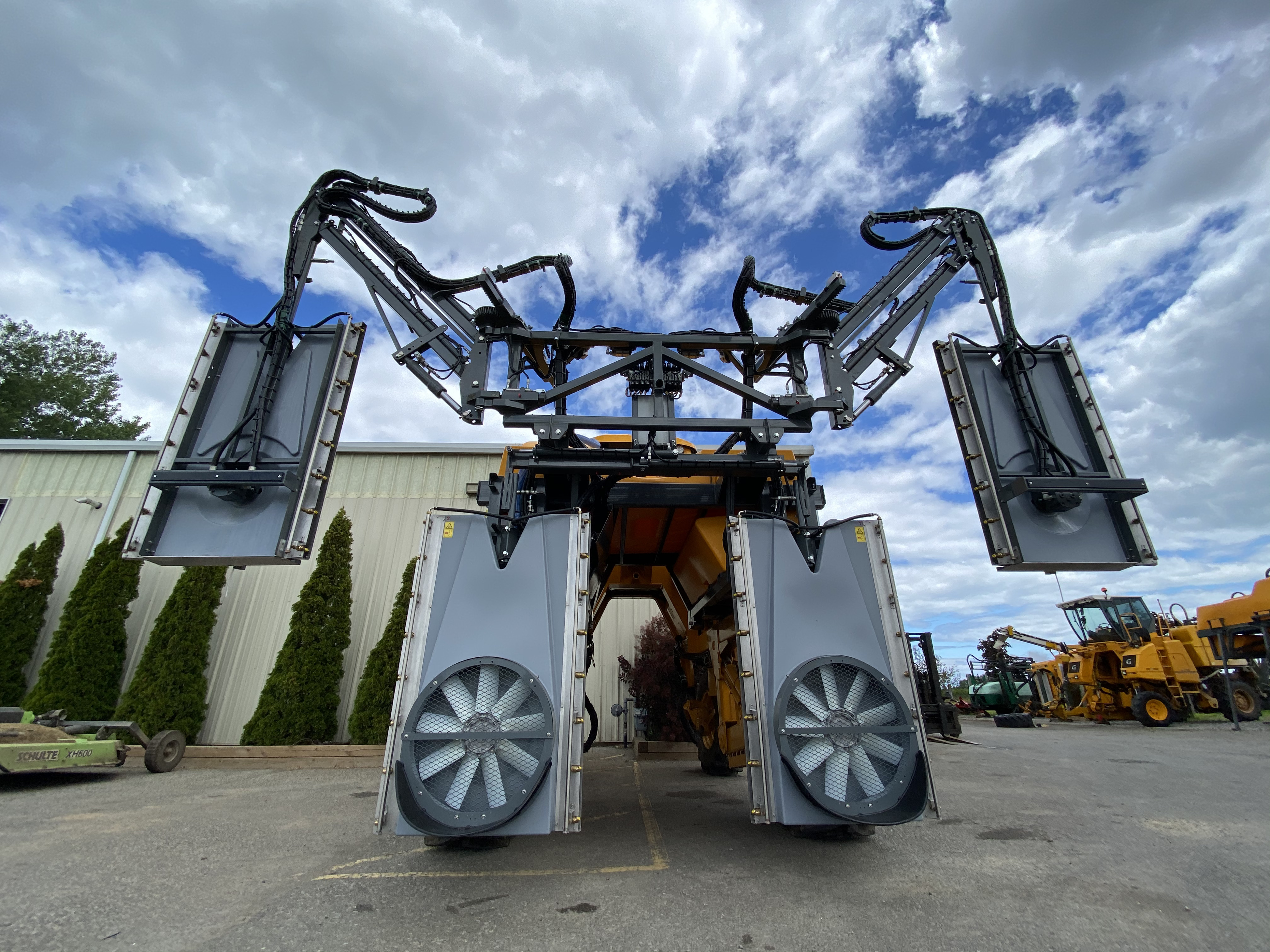

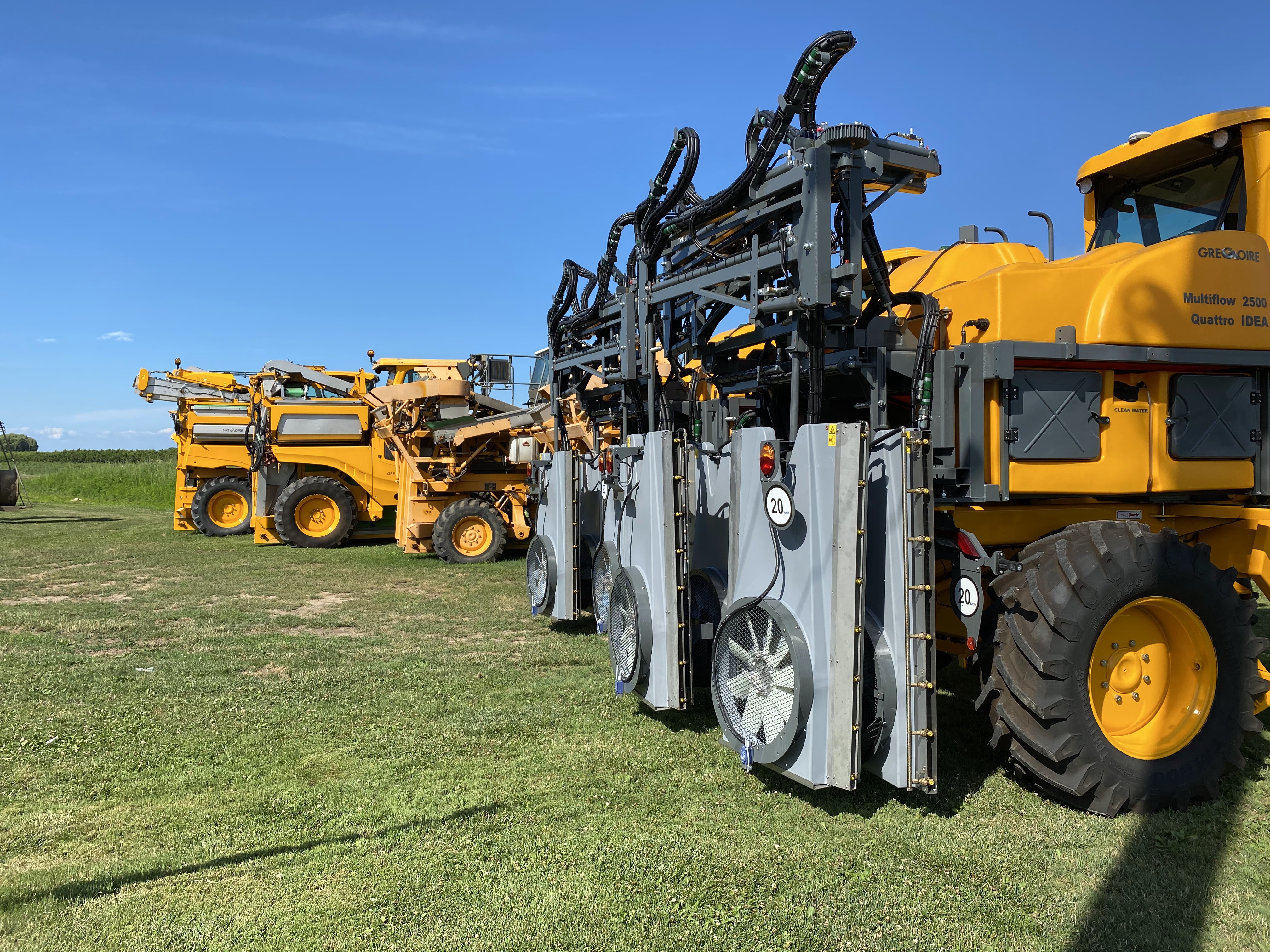

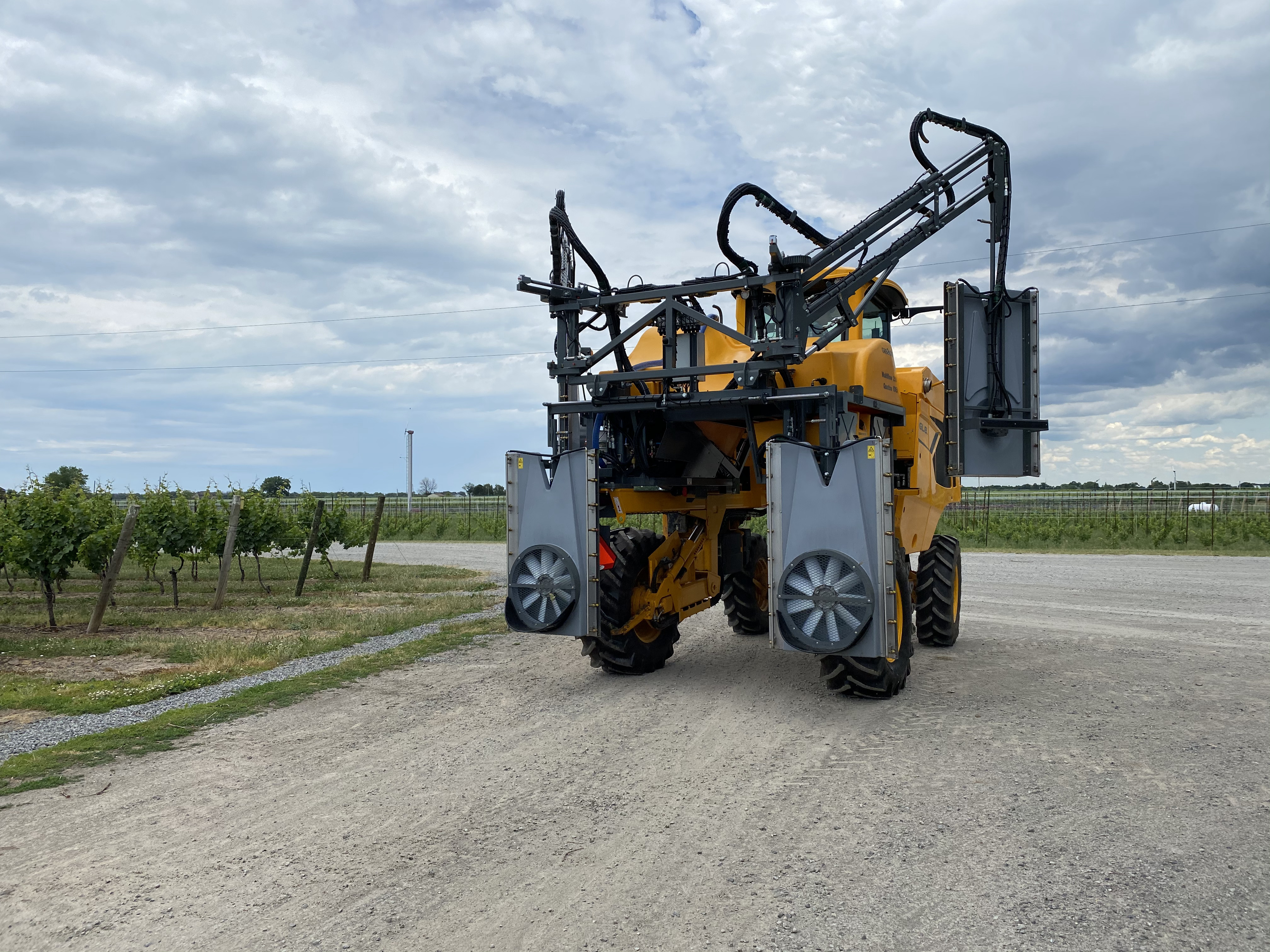

Suitable for row widths from 1.80 to 3m, this shape of this spraying cell means it offers formidable efficiency in dense vineyards. 4 turbines (650mm in diameter with an inverted air system preventing any recirculation of products or pick-up of debris) edged with stainless flaps supporting the twin-jets diffusers tilted 30° backwards to help penetration of the product. A uniform air flow, directed horizontally, is provided by the vertical towers equipped with the DX'PLUS system, ensuring excellent distribution over the plants.
TOOLintegration
With TOOLintegration, GREGOIRE versatile carriers are pre-equipped as standard to be versatile, allowing a GREGOIRE spraying unit or tool to be easily installed. ISOBUS technology allows this equipment to be controlled directly using the existing controls in the cab.
Dx'Plus system
Dx'Plus is a tower with a specific design. It enables air to flow uniformly, and the product to be mixed perfectly. Twin-jet diffusers on stainless flaps tilted 30° backwards also allow optimum penetration of the product into the plant canopy.
DynaDiff
The DynaDiff outlet increases the air speed to give you better distribution of the product and perfect droplet formation. It provides significant agitation of the plant canopy to ensure optimum penetration of the product. Application is excellent, with limited drift.
EASYselect
EASYselect is a centralisation device for the valves supplying your sprayer. It controls the external mixer, the rinsing nozzle, the stainless container rinsing screen, the cleaning lance and hydro-injectors to simplify cleaning of your equipment.
